Vivid Sign Series

vivid sign_header

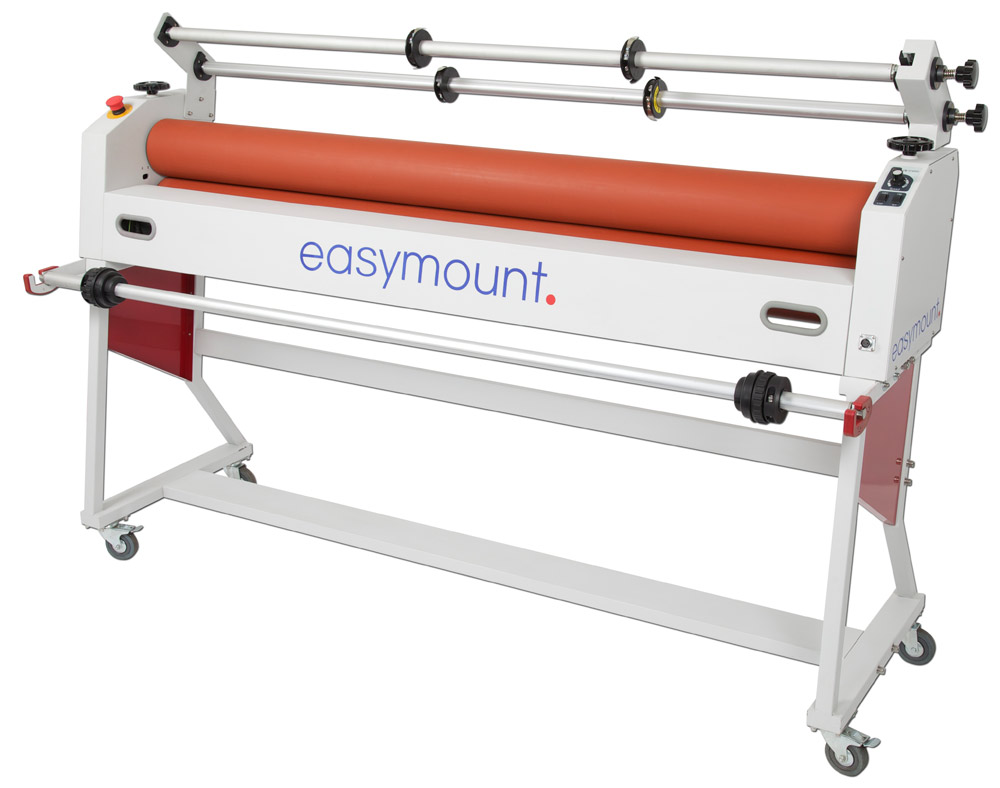

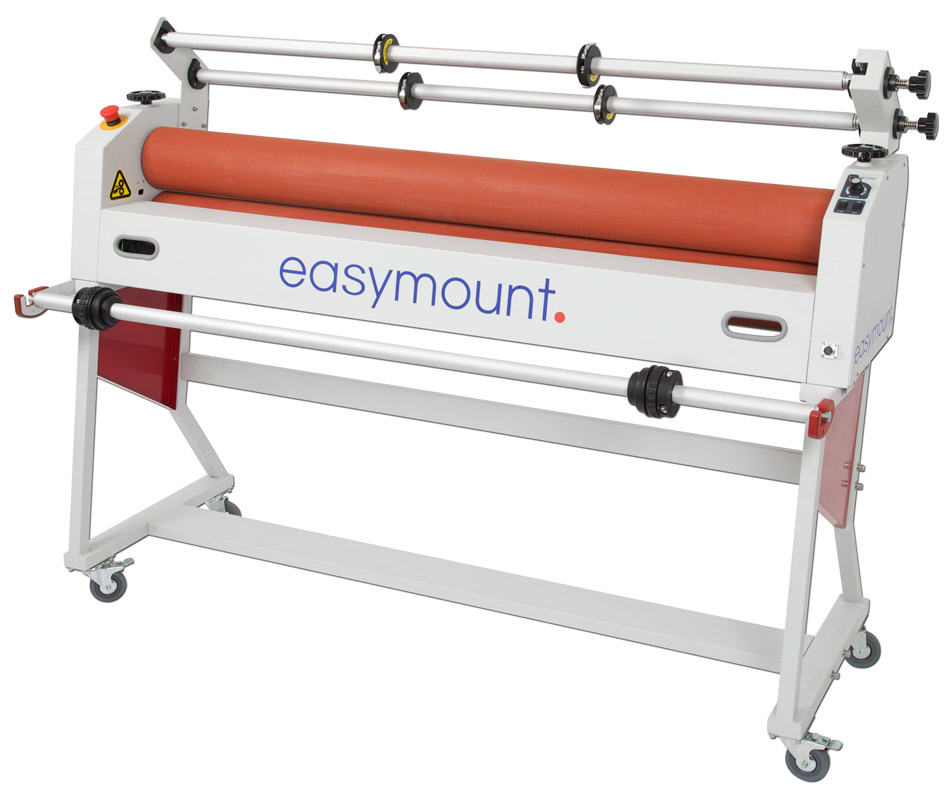

A simple, cost effective design make the Easymount Sign range a great solutions for mounting and laminating of commercial print or signage. With widths of 720mm, 880mm, 1400mm and 1600mm.

A versatile system ideal for the mounting of print to board, laminating prints, applying vinyl, application tapes and adhesives. Foot pedal control, variable speed and fully reversible motors allow ease-of-use and give consistently good results every time.



For full details, call us on 01536 415511

or email us by clicking This email address is being protected from spambots. You need JavaScript enabled to view it. .

  • vivid sign_icon
    • Vivid Sign Series Laminator
    • Set of allen key tools
    • Foot switch
    • Instructional DVD
    • Manual
    • Dust Cover
    • Underguarded Sheet Slitter
  • Manufacturers Specifcations for the Vivid Sign Series.

    ItemSign 650Sign 720/880Sign 1400/1600
    Laminating Speed (m/min)
    2
    2
    4
    Max Width (mm)
    650
    720/880mm
    1400/1600mm
    Mounting Thickness (mm)
    15
    15/15
    20
    Roller Diameter (mm)
    65
    70
    130
    Control Panel
    LED
    LED
    LED
    Pressure Adjustment
    Manual
    Manual
    Manual
    Film Core (mm)
    75
    75
    75
    Power Supply AC (V)
    220/240
    220/240
    220/240
    Power Supply Required (Amps)
    13
    13
    13
    Power Consumption (w)
    50
    50
    65
    Overall Dimensions - Width (mm)
    850
    940/1100
    1555/1755
    Overall Dimensions - Depth x Height (mm)
    300 x 470
    650 x 1250
    575 x 1200
    Gross Machine Weight (Kg)
    45
    65/75
    105/110
    Warranty
    1 Year
    1 Year
    1 Year
