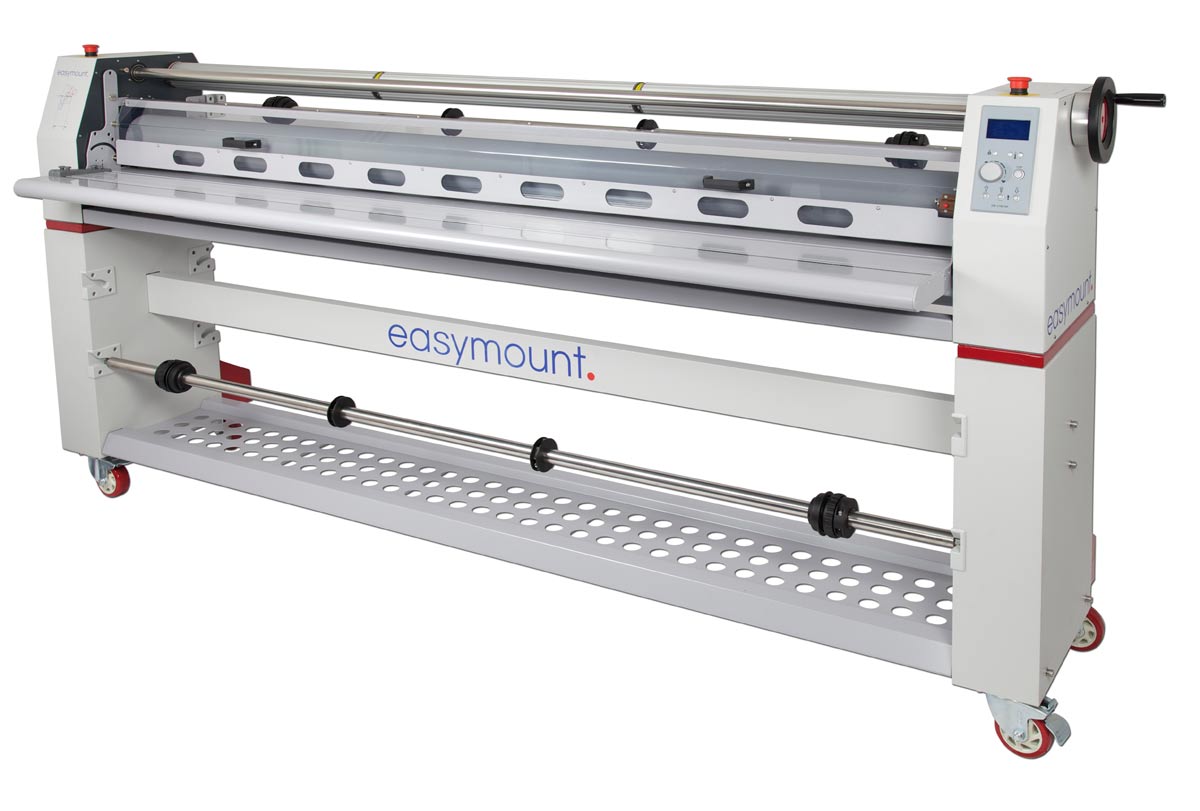

Vivid EasyMount Single Hot Series

vivid emsh_header

Easymount wide format single heated mount and laminating systems are available in widths of 1200mm, 1400mm, 1600mm & 2100mm to suit all requirements.

Affordable pricing, sturdy build quality and powerful features usually only found on far more expensive systems offers a great laminating system in any commercial print or signage environment requiring a quality finish. The heated top roller offers reduced silvering so that finished work can be shipped to the client immediately.

A versatile system ideal for the mounting of print to board, laminating prints, applying vinyl, application tapes and adhesives.



For full details, call us on 01536 415511

or email us by clicking This email address is being protected from spambots. You need JavaScript enabled to view it. .

  • vivid emsh_icon
    • Vivid Sign Series Laminator
    • 2 x Heating Elements (1 Spare)
    • Set of allen key tools
    • Foot switch
    • Instructional DVD
    • Manual
    • Dust Cover
    • Underguarded Sheet Slitter
  • Manufacturers Specifcations for the Vivid EasyMount Single Hot Series.

    ItemSH 1200SH 1400SH 1600SH 2100
    Laminating Speed (m/min)
    6
    Max Width (mm)
    1200
    1400
    1600
    2100
    Mounting Thickness (mm)
    25
    Roller Diameter (mm)
    112
    112
    130
    130
    Warm up time (mins)
    10
    Heater System
    Internal Infrared
    Temperature Range (centigrade)
    0-60
    Control Panel
    Digital
    Pressure Adjustment
    Manual/Guage
    Film Core (mm)
    75
    Power Supply AC (V)
    220/240
    Power Supply Required (Amps)
    13
    Power Consumption (w)
    970
    970
    1310
    1500
    Overall Dimensions - Width (mm)
    1790
    1990
    2190
    2650
    Overall Dimensions - Depth x Height (mm)
    650 x 1225
    Gross Machine Weight (Kg)
    185
    210
    245
    280
    Warranty
    1 Year
    1 Year
    1 Year
    1 Year
