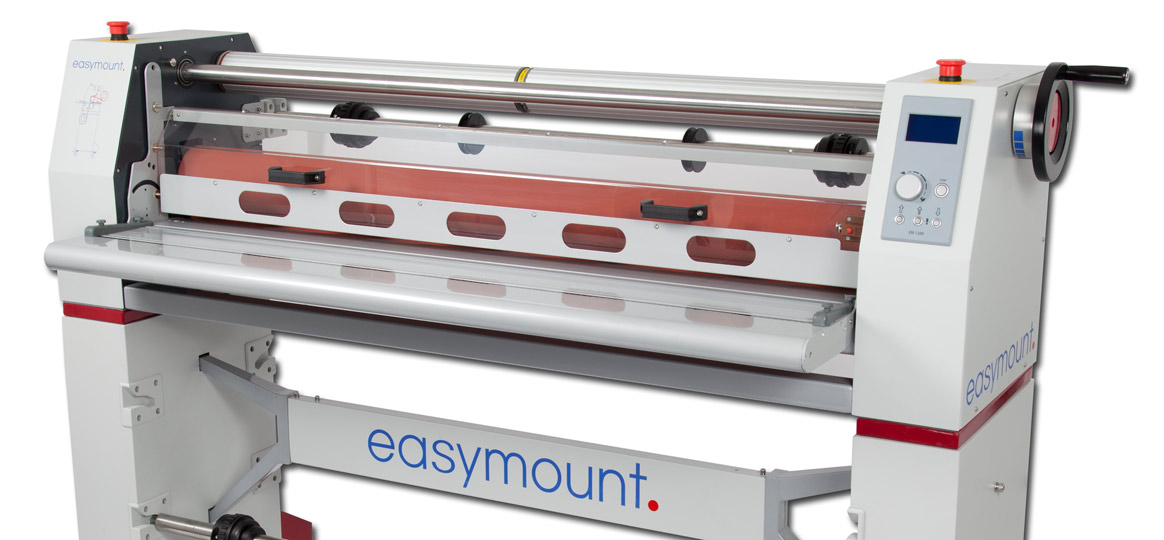

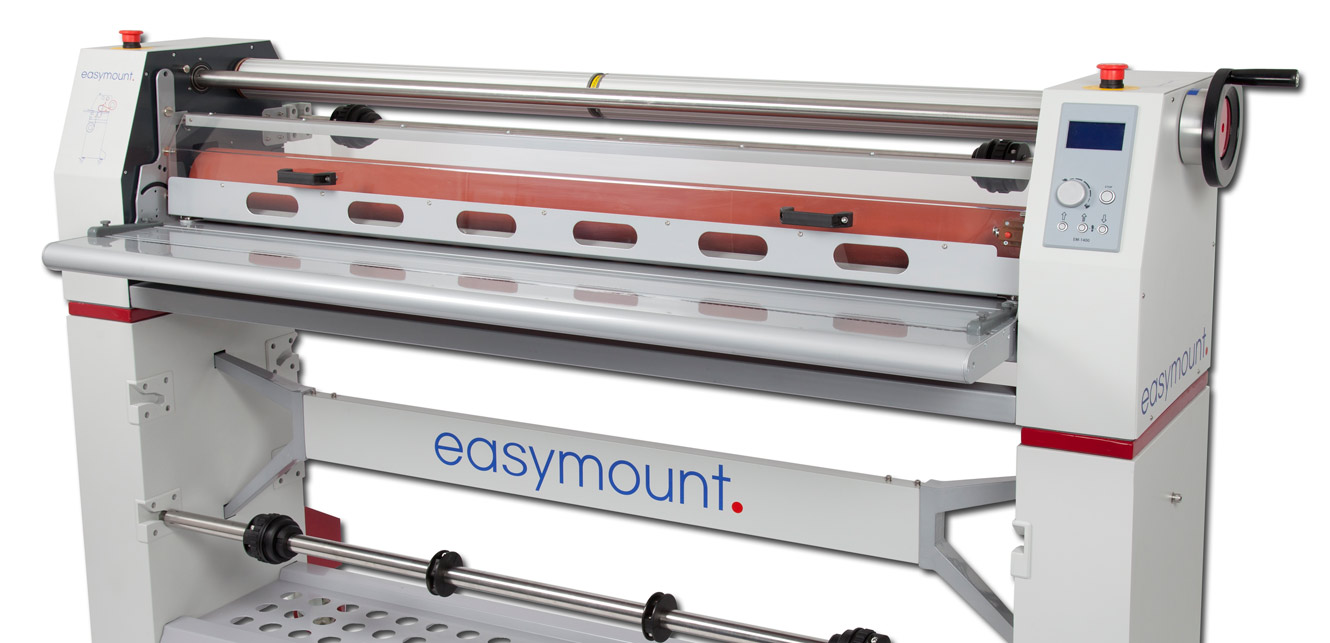

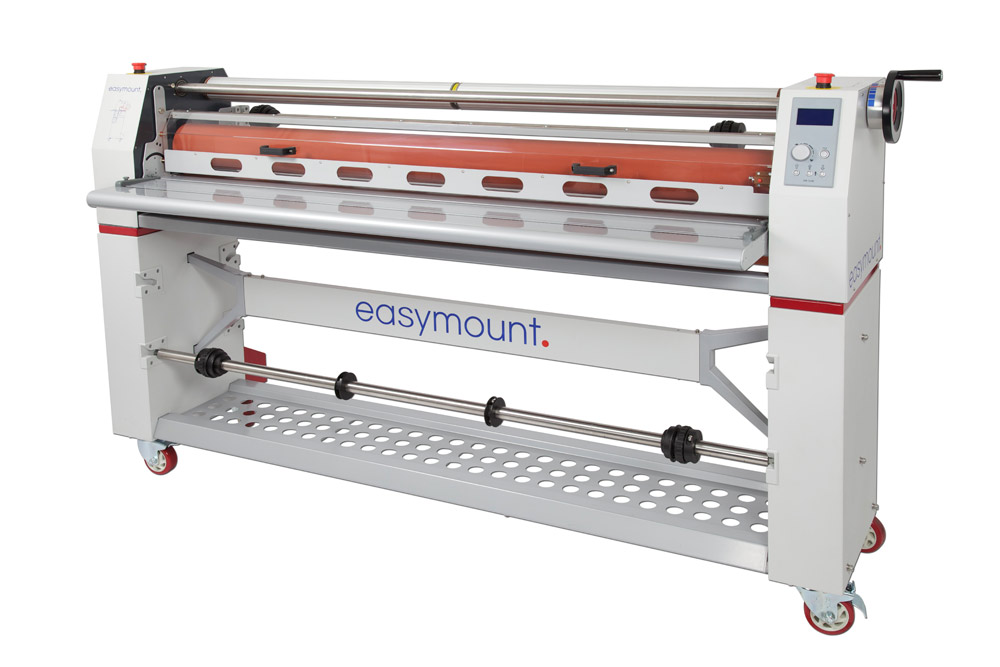

Vivid Easy Mount Cold Series

vivid emcold_header

Easymount wide format cold mount and laminating systems are available in widths of 1200mm, 1400mm and 1600mm to suit all requirements.

Affordable pricing, sturdy build quality and powerful features usually only found on far more expensive systems offers a great laminating system in any commercial print or signage environment requiring a quality finish.

A versatile system ideal for the mounting of print to board, laminating prints, applying vinyl, application tapes and adhesives.



For full details, call us on 01536 415511

or email us by clicking This email address is being protected from spambots. You need JavaScript enabled to view it. .

  • vivid emc_icon
    • Vivid Sign Series Laminator
    • Set of allen key tools
    • Foot switch
    • Instructional DVD
    • Manual
    • Dust Cover
    • Underguarded Sheet Slitter
  • Manufacturers Specifcations for the Vivid EasyMount Cold Series.

    ItemEM 1200EM 1400EM 1600
    Laminating Speed (m/min)
    6
    6
    6
    Max Width (mm)
    1200
    1400
    1600
    Mounting Thickness (mm)
    25
    25
    25
    Roller Diameter (mm)
    112
    112
    130
    Control Panel
    Digtal
    Digtal
    Digtal
    Pressure Adjustment
    Manual/Guage
    Manual/Guage
    Manual/Guage
    Film Core (mm)
    75
    75
    75
    Power Supply AC (V)
    220/240
    220/240
    220/240
    Power Supply Required (Amps)
    13
    13
    13
    Power Consumption (w)
    50
    50
    50
    Overall Dimensions - Width (mm)
    1790
    1990
    2190
    Overall Dimensions - Depth x Height (mm)
    650 x 1225
    650 x 1225
    650 x 1225
    Gross Machine Weight (Kg)
    185
    210
    245
    Warranty
    1 Year
    1 Year
    1 Year
